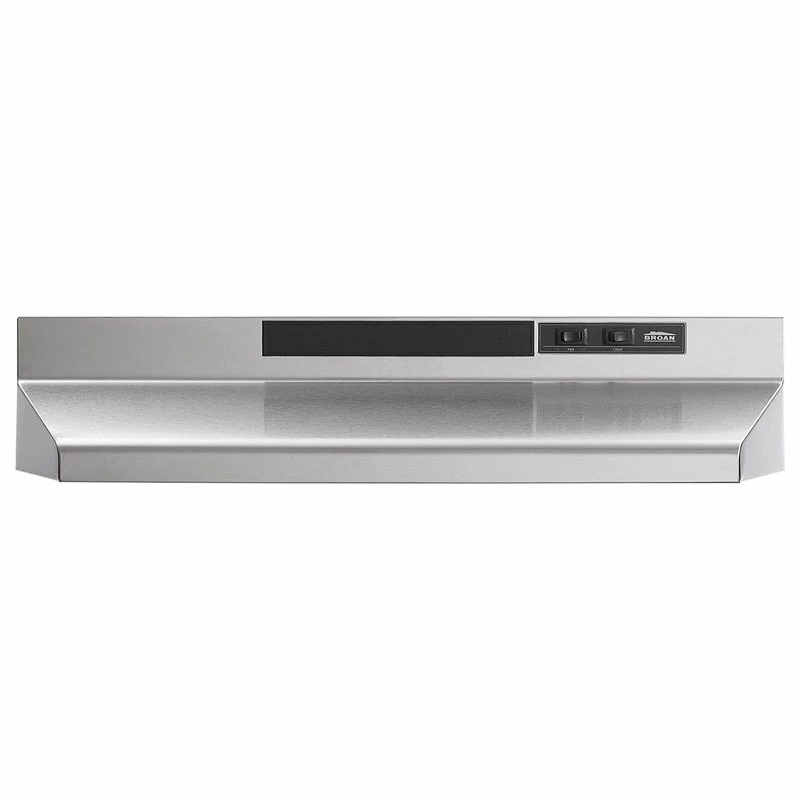

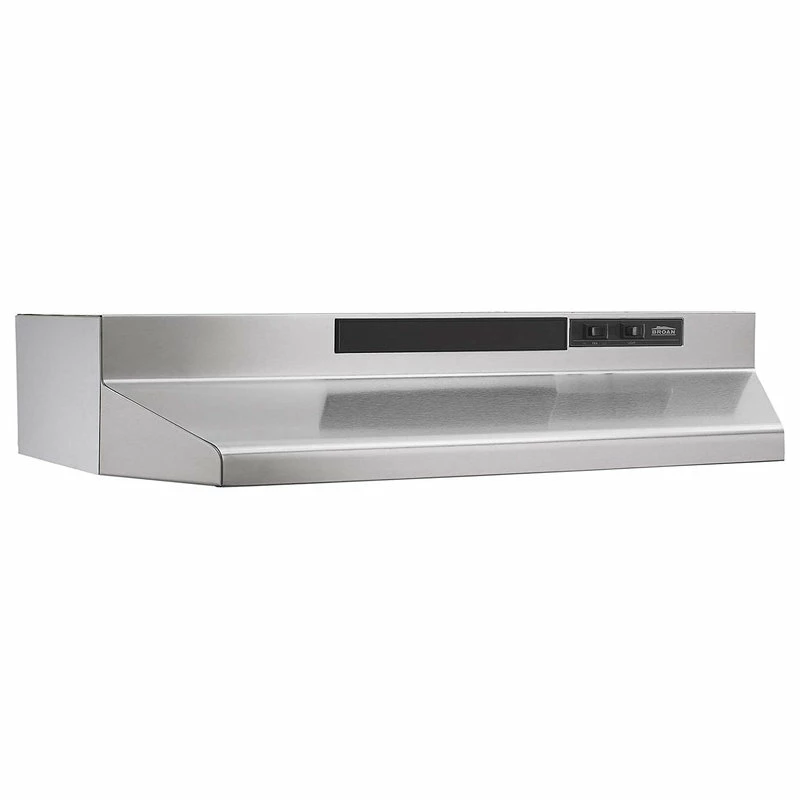

Broan 42″ Convertible Range Hood, 160 CFM F404

Description

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.
Four-way convertible; installs ducted 3.75″x10″ (vertical and horizontal), 7″ round (vertical) and non-ducted. Non-Ducted Filter sold separately – Model 41F

• 160 CFM, 6.5 Sone (3.75″x10″ discharge) or 190 CFM (7″ round discharge) performance – HVI 2100 Certified
• Dishwasher-safe aluminum grease filter
• A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
• Includes 3.75″x10″ damper/adapter and 7″ round adapter
• BP87 dampers sold separately

This range hood can work in an ADA-compliant application. See Additional Information above.

PRODUCT HIGHLIGHTS

• 42 In. Two-Speed 4-Way Convertible Under Cabinet Range Hood – Bisque

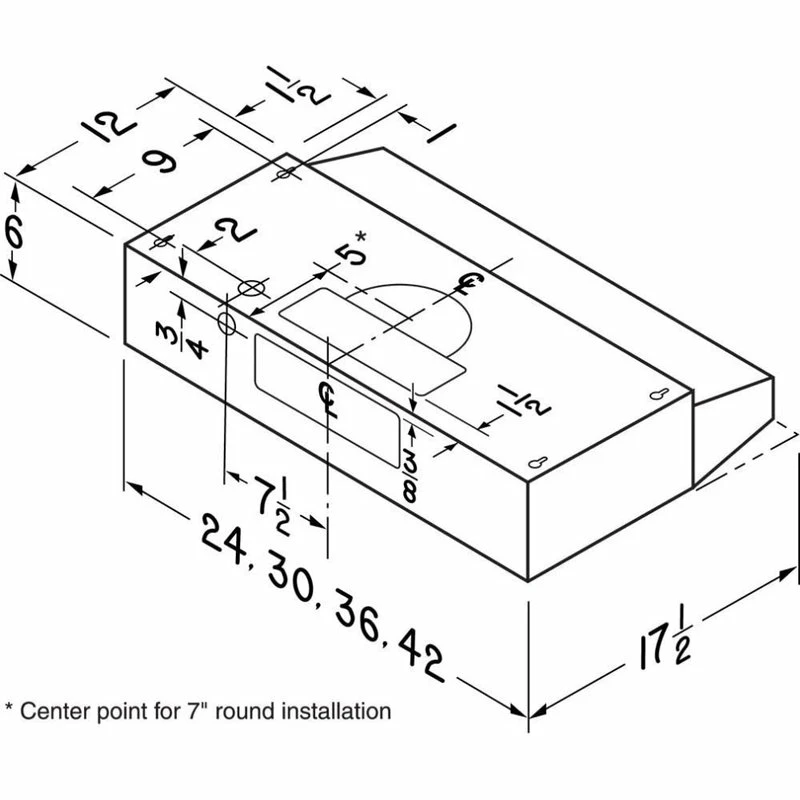

• Installation options include ducted 3-1/4 in. x 10 in. (vertical or horizontal), 7 in. round (vertical) and non-ducted
• 160 CFM, 6.5 Sones (3-1/4 in. x 10 in. discharge) or 190 CFM, 6.5 Sones (7 in. round discharge) performance

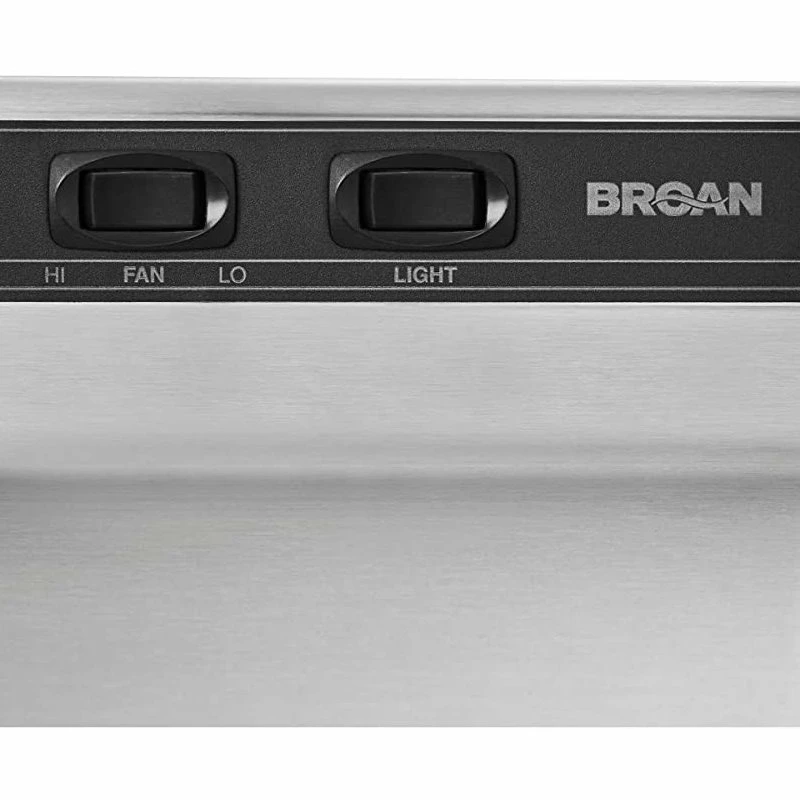

• Polymeric blade with 2-speed rocker-type fan control
• Rocker type light control (75-watt bulb not included) and light lens

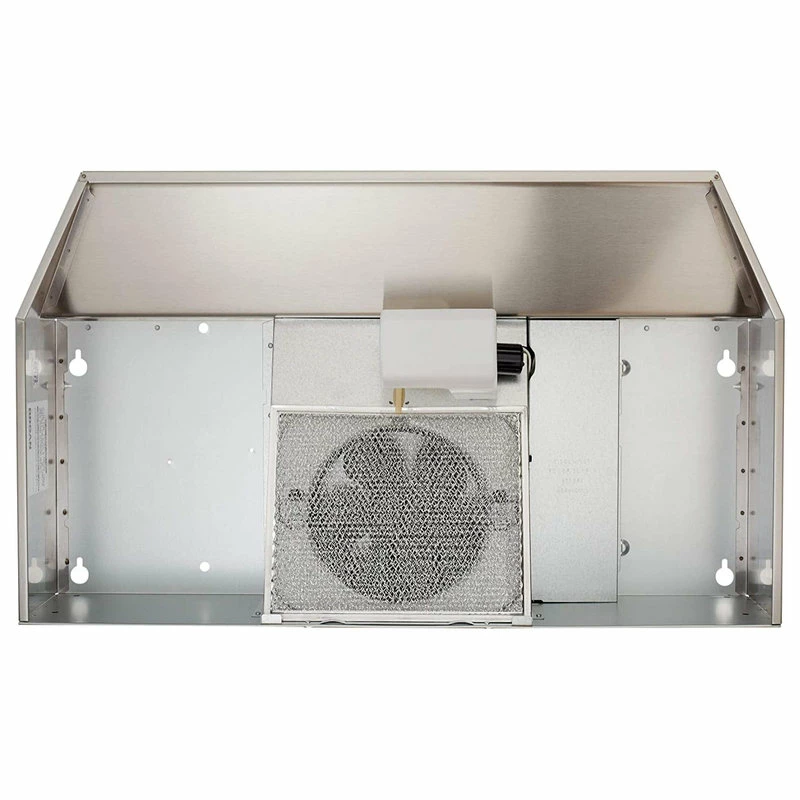

• Dishwasher-safe aluminum grease filter for ducted installation (non-ducted filter sold separately)
• Mitered sides and hemmed bottom for safety and good looks
• Includes 3-1/4 in. x 10 in. damper/adapter and 7-inch round adapter
• HVI 2100 Certified
• U.L. Listed
• Size: 42-inch
• Color: Bisque

SPECIFICATIONS

• GENERAL INFORMATION
• Manufacturer Broan-NuTone, LLC
• Manufacturer Part Number F404
• Brand Name Broan
• Product Series F40000
• Product Model F404
• Product Name F404 42″ Convertible Range Hood, Bisque
• Product Type Vent Hood

• TECHNICAL INFORMATION
• Ventilation Type Convertible
• Recirculation
• Installation Type Under Cabinet
• Duct Diameter 7″
• Bulb Type Incandescent
• Maximum Bulb Power 75 W
• Hood Width 42″
• Duct Shape Round
• Rectangular
• Duct Mount Vertical
• Horizontal
• Ventilation Location Internal
• Maximum Air Flow 190 CFM
• Filter Type Grease
• Aluminum
• Features Easy Clean
• Dishwasher Safe Filter

POWER DESCRIPTION

• Input Voltage 120 V AC

• PHYSICAL CHARACTERISTICS
• Color Bisque
• Material Aluminum Filter

• MISCELLANEOUS
• Package Contents F404 42″ Convertible Range Hood, Bisque Damper Filter
• Certifications & Standards HVI 2100 ADA UL

ITEM DETAILS

• Part Number F404
• Manufacturer Broan
• Category Hoods/Ventilation
• Mfr ID BROAN
• Color Bisque
• UPS Shippable N
• Shipping Weight 16.2
• UPC Code 026715143085

DOWNLOADS

Specification Sheet

Product Manual

Custom Spec Sheet
